130 Ton Single Phase Press Brake 3 Axis Metal Sheet Bending Machine

Shenzhen CODT technology co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

130 Ton Single Phase Press Brake 3 Axis Metal Sheet Bending Machine

Brand Name : eko

Model Number : ES3012

Certification : CE,ISO

Place of Origin : CHINA

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, D/P, D/A, L/C

Supply Ability : 100 sets per day

Delivery Time : 7-30days

Packaging Details : wooden package

Brand name : eko

Automation : Automatic

Material / Metal Processed : Brass / Copper, Stainless steel, ALLOY, Carbon steel

Application : Metal Sheet Bending

Contact Now

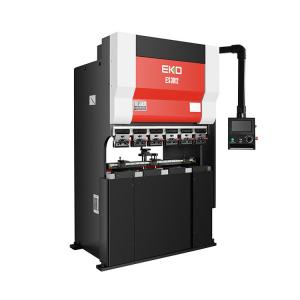

protective film clamp prima 130 ton single 1 v bending follower support press brake ES3012

No. Name Specification Measure Unit
1 A (Length) 1750 mm
2 B (Width) 1100 mm
3 C (Height) 2440 mm
4 D (Installation width) 1480 mm
5 E (Throat depth) 110 mm
6 F (Opening height) 420 mm
7 G (Distance between lower and upper table) 250 mm
8 H (Upper table height) 940 mm
9 Capacity 30 ton
10 Bending length 1200 mm
11 Stroke 100 mm
12 Back gauge stroke 300 mm
13 Total power 11.2 kw
14 Total weight 2.5 ton
15 Number of axis 3 axis
16 Accuracy of axis D1/D2 ±0.005 mm
17 Accuracy of axis L ±0.01 mm
20 Approach speed of axis D1/D2 150 mm/s
21 Bending speed of axis D1/ D2 0.2-50 mm/s
22 Return speed of axis D1/ D2 150 mm/s
23 Moving speed of axis L 500 mm/s

Key Components Configuration List

No. Name Set Manufacture
1 CNC Controller(NC Max) 1 EKO(China)
2 Foot switch 1 KACON(Korea)
3 Terminal module 3 JRT(China)
4 Circuit breaker 1 SCHNEIDER(Germany)
5 Circuit breaker Switch 1 SCHNEIDER(Germany)
6 AC contactor 3 SCHNEIDER(Germany)
7 Relay 1 SCHNEIDER(Germany)
8 Relay socket 1 SCHNEIDER(Germany)
9 Power supply 1 DELTA(Taiwan)
10

Motor driver + Servo motor

(D axis)

2 SANYO(Japan)
11

Motor driver + Servo motor

(Back gauge)

1 MITSUBISHI(Japan)
12 Sensor 5 OMRON(Japan)
13 Ball screw(D axis) 2 AZI(China)
14 Screw + Rail(back gauge) 5 HIWIN(Taiwan)
15 Bearing 14 NSK(Japan)
16 Timing belt 2 OPTIBELT(Germany)
17

Frame + Upper table

(Q345E Steel)

1 EKO(China)

Main structure and working principle

The machine is a 3-axis (D1, D2, and L) full-servo press brake, dispense with hydraulic oil, free from the influence of oil temperature variation on the workpiece, and the machine tool is more precise, energy-saving and efficient than the oil press. It is mainly composed of the following components:

Frame body

The component comprises a frame, the upper and lower table, transmission screw rod, support bearing group, guide wheel group, etc. The transmission screw rod is connected with the upper table and the frame through bolts, the servo motor drives the screw rod to rotate upper table rapidly with reciprocating motion, for the purpose of bending and forming moulds. The two groups of transmission screw rods can be independently controlled, and the angle deviation, if any, can be automatically compensated, so that the angle change of the workpiece is controlled within the tolerance range.

Back gauge system

The assembly unit comprises lifting component, sliding table component, material retaining component, etc. The positioning system of back gauge of the L axis is driven by a servo motor through precision screw rod, can quickly reach the specified position.

Mould components

The assembly unit consists of the upper and lower mould assembly. The upper mould is fixed on the upper table by the clamping device; the clamping device provided by the device realizes quick loading and unloading of moulds through a mechanism. The clamping device is provided with a wedge trimming mechanism for locally modifying the bending angle so that the angle of workpiece is changed within the tolerance range. The lower mould, together with the mould sea and rail guide, is arranged on the lower table.

EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system. Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system.
Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.
